Pulse Effects Board

$12.99 USD
Change

Description

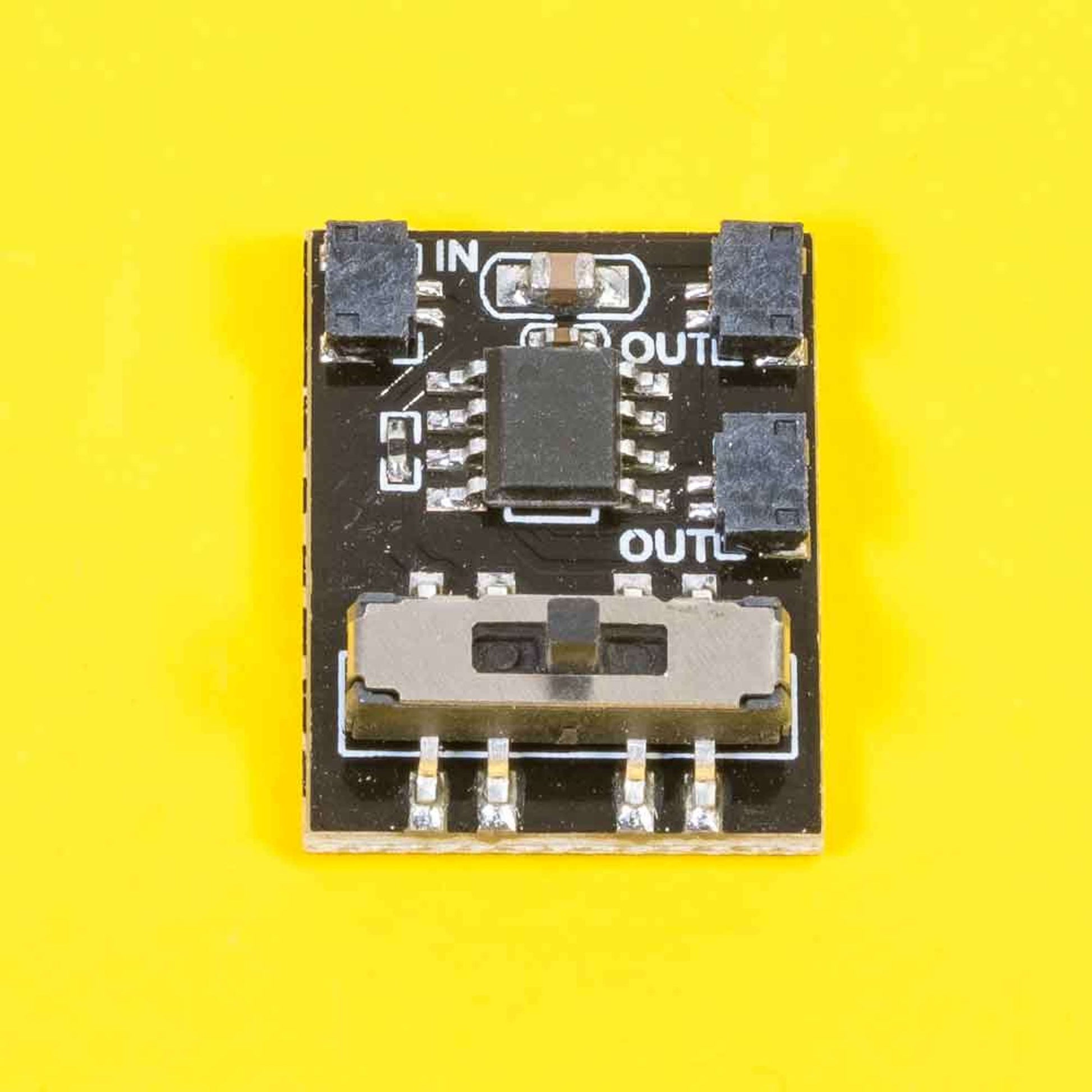

The Pulse Effects Board will allow you to select three different pulsing patterns, ranging from slow, medium and fast - giving your lights the ability to create range of energetic effects!

Connect your desired components directly via the two outputs, each channel controls a different rate of effect. Multiply and extend your circuit with our expansion boards.

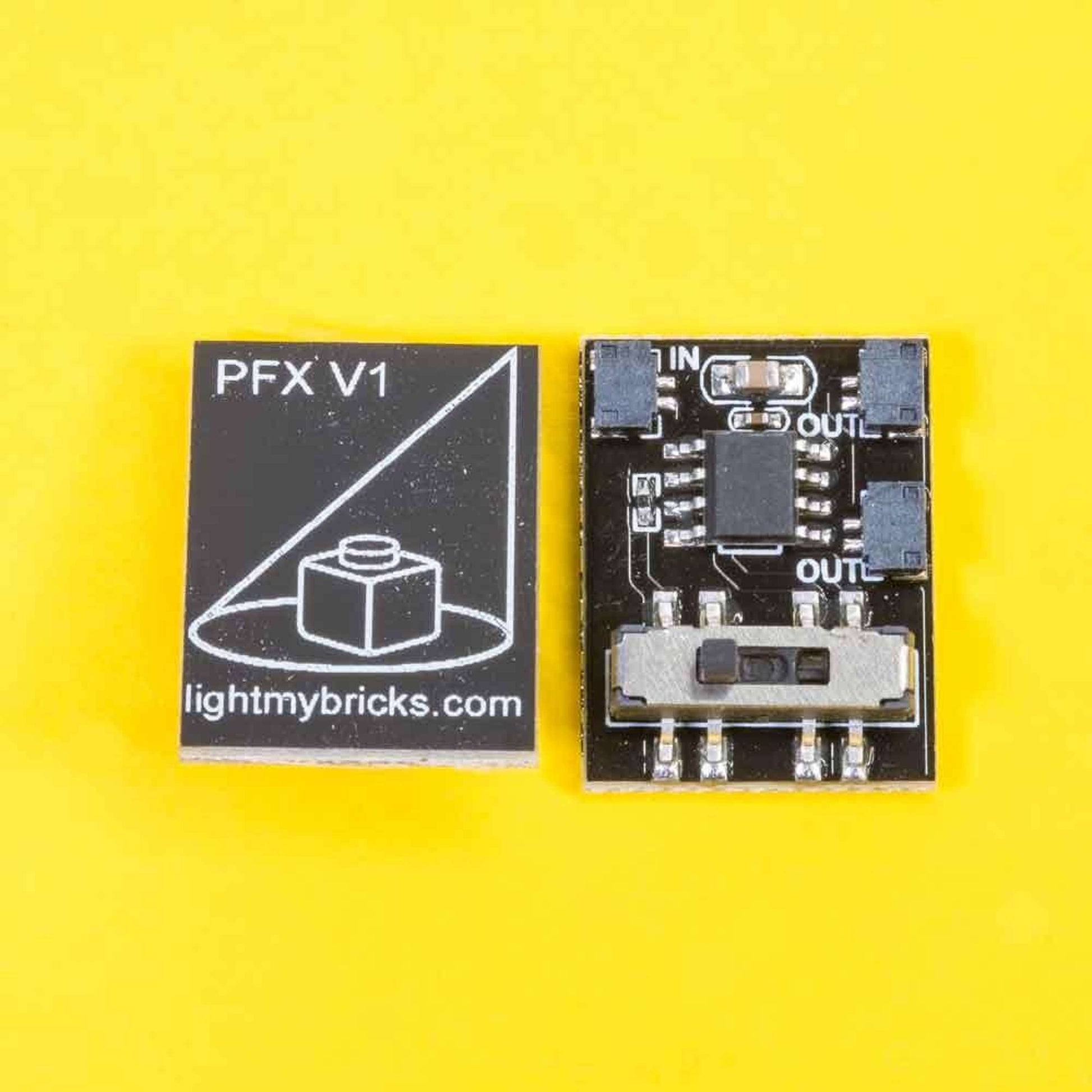

Physical dimensions are 20mm x 15mm. Perfectly sized to be concealed within any LEGO set

Please note: This effects board can only be used for static lights. It can NOT control our Flashing or Rotating Bit Lights.

Powering Options: If you wish to use the 2 output ports for 2-6 bit lights then the Flat or Round Battery Pack will be sufficient. If you wish to combine this effect board with more lights, expansion boards, and connecting cables you will require more power from an AA Battery Pack or USB Power Cable.

Light My Bricks LEGO® Lighting Components provide an easy DIY way for LEGO® fans to customise their models using LED lights. With a wide variety of colours, lighting options and effects, anyone can light up their LEGO® set.

All our components are plug and play - no electronics knowledge needed!

User Guide

Our User Guide is a great resource that outlines proper component handling and installation with LEGO® models.
